Piano Analytics

Follow our setup guide to connect Piano to QUANTI:

Prebuilt reports and definition

Piano Analytics limits the number of rows returned per query to 1,500,000. We split our queries by day and by account, but it's important to understand that if a single query for one account exceeds 1,500,000 rows, the API returns an error. As a result, the query fails, and the data is not inserted into our system.

To avoid this, make sure to use the filtering feature to reduce the number of returned rows and stay within the API limits.

Prerequisites

To connect Piano to QUANTI, you need a Piano account.

Setup instructions

Find your credentials

1

Access your profile parameters

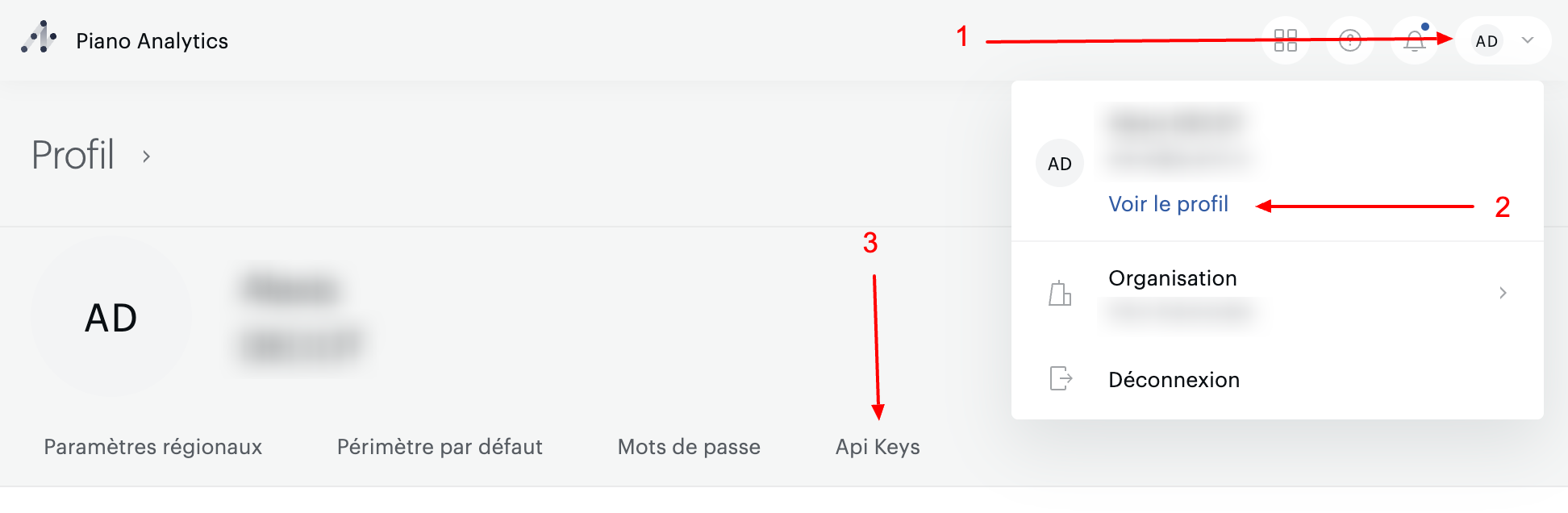

Go on your profile parameters to the top-right corner : See profile < API Key

Access path to API keys on Piano interface

2

Create a new API Key

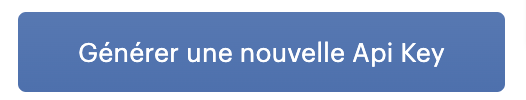

Create a new API Key clicking on the blue button "Create a new API Key".

Button to generate a new API key

3

Give it a name and a description

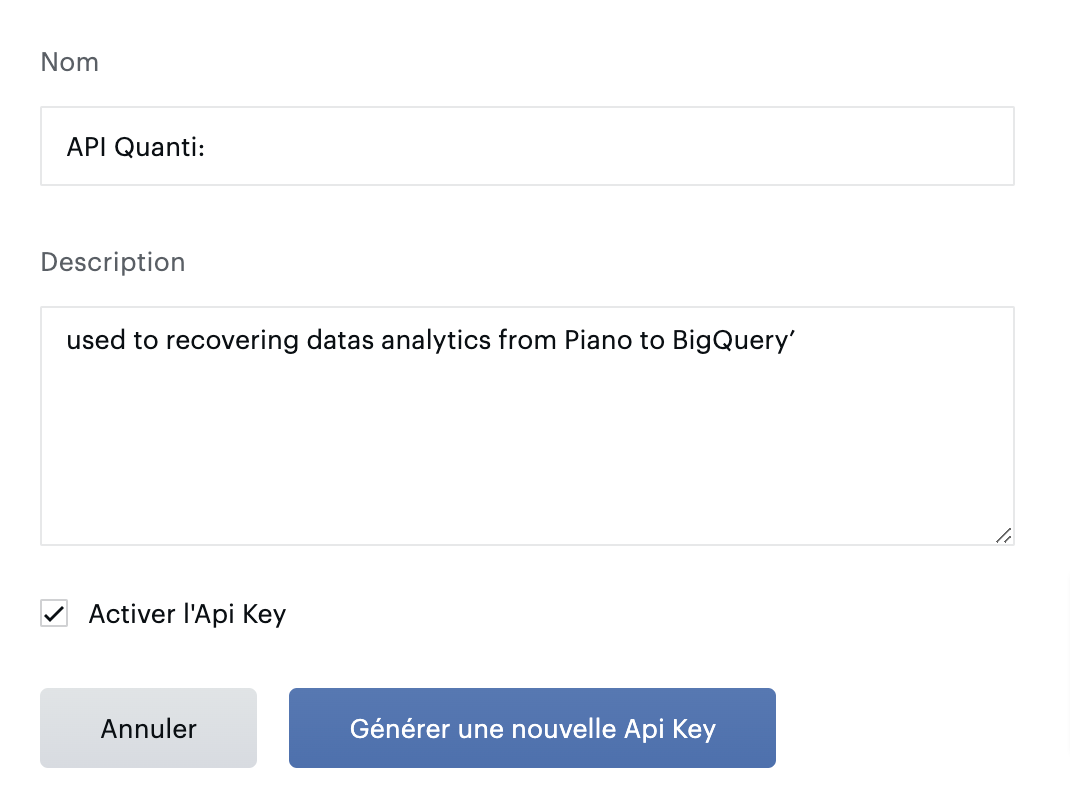

Give it a name and a description. Let the box ticked and save it.

Description pop-in of API key

4

Note the API credentials

Make a note of the API credentials. You will need it to configure QUANTI.

Find your Website ID

Your Website ID is in the url when you are connected to your Piano account. This is the value of the parameter site.

https://explorer.atinternet-solutions.com/core/#/overview/overview/020202?period.shortcut=yesterday&period.granularity=3&site=612329&graph.options.defaultlist=minmax&graph.options.comparisonlist=nocomparison&graph.options.eventloglist=eventlog&isIgnoreNullProperties=false

Connector configuration

1

Authorize your account

1. Access Key and Secret Key retrieved following the steps above.

2. Site ID retrieved following the steps above.

2

Connector information

1. Connector Name : Name your connector. It must be unique.

2. Dataset ID : Define the ID of the dataset. It must not exist yet, as it will be created and data will be sent there.

3

Create reports

Select the pre-built reports you want to activate, and/or create your own custom reports. To help you configure custom reports, refer to the 'Custom reports' chapter below.

Pre-built reports

All prebuilt tables are metric tables partitioned by _quanti_date (delete-insert per day).

Content & Navigation

• content_pages: Contains daily records of user interactions for each website page, enabling content-level performance tracking.

• traffic_sources: Describes how users arrive on the site, with detailed information about traffic origin, campaigns, and referrers.

• internal_search: Internal site search performance — keywords searched and result page consulted, with unique visitor counts.

• marketing_campaigns: Consolidated traffic and conversion view by marketing campaign (UTM source, campaign name, content, term).

Commerce & Conversions

• transaction_source: Stores transactional data along with marketing attribution fields, providing insight into the source and context of each purchase.

• product_cart_funnel: Product and cart funnel — product page views, add/remove-to-cart and purchases by product ID and category. Complements transaction_source, which only captures the final transaction.

Audience & Behaviour

• geo_breakdown: Audience and revenue breakdown by geographic zone (country, region, city).

• device_tech: Audience breakdown by device type, operating system, browser family and screen resolution.

• visitor_loyalty: Visitor loyalty metrics — new vs returning visitors split by visitor_new_return dimension.

Advertising

• onsite_ads_performance: Onsite advertising and self-promotion performance (impressions, clicks) by campaign, type, placement, format and advertiser.

• publisher_ad_revenue: Third-party advertising revenue for publishers — clicks by advertiser, format and placement.

Media

• video_engagement: Video and audio content engagement (plays, completion, time watched) by media name, type (video / audio / live) and channel.

Custom reports

Piano Analytics limits the number of rows returned per query to 1,500,000. We split our queries by day and by account, but it's important to understand that if a single query for one account exceeds 1,500,000 rows, the API returns an error. As a result, the query fails, and the data is not inserted into our system.

To avoid this, make sure to use the filtering feature to reduce the number of returned rows and stay within the API limits.

1

Retrieve your field names from Piano Analytics

The easiest way to identify the field names expected by the Piano API is to use the Data Query tool directly in the Piano Analytics interface.

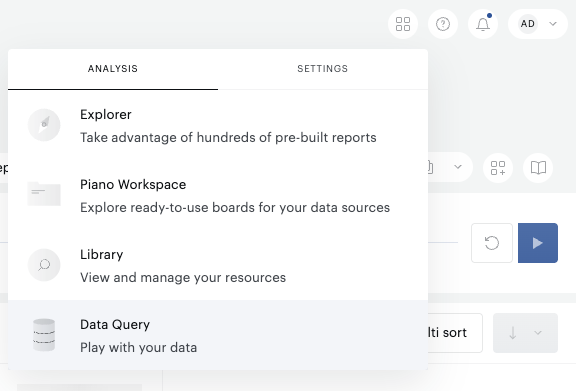

• In Piano Analytics, navigate to Data Query (top-right corner, icon with 4 squares)

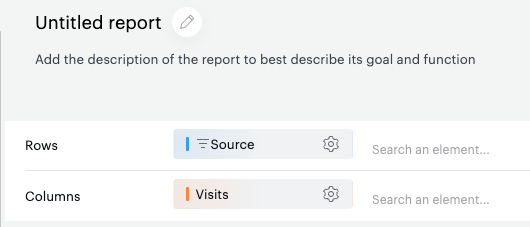

• Build the report you want to extract via the QUANTI connector by selecting your dimensions and metrics

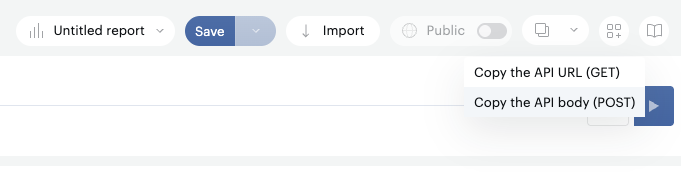

• Once your report is configured, click the copy/paste button in the top-right corner, then select Copy the API body (POST)

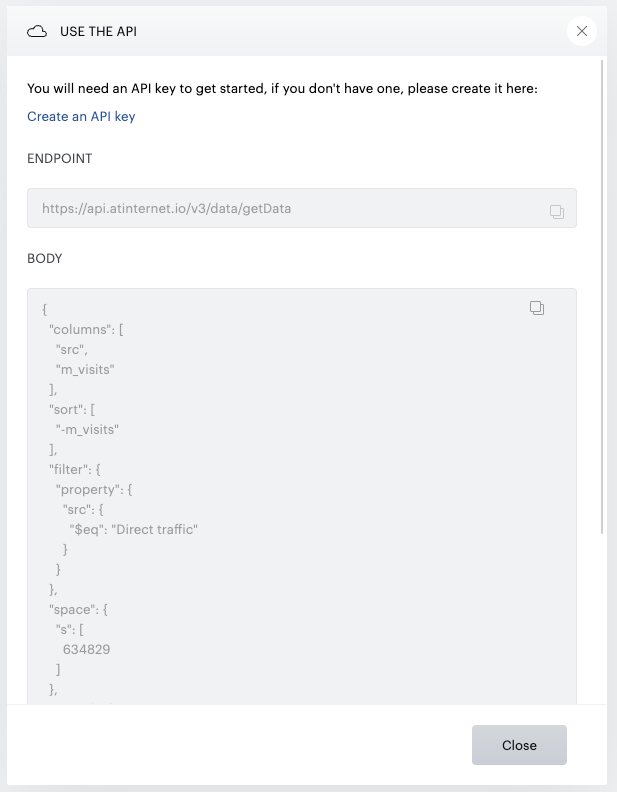

• A pop-in appears with the full API body. Retrieve:

  • The content of the columns object → this will populate the fields array in your JSON

  • The content of the filter object (if any) → this will populate the filter field in your JSON

2

Configure the custom report query

In QUANTI, at the Create reports step, click Add custom report. A pop-in opens with two steps: Query and Schema.

In the Query step:

• Give your report a name in the Query name field — this name will become the table name in your data warehouse

The name chosen for your custom report is the one that names your table in the data warehouse.

• Fill in the Query configuration (JSON) with the following structure:

{
  "fields": [],
  "sort": [],
  "filter": ""
}

• fields (required): Paste the field names retrieved from Piano Analytics. Each field name must be a quoted string, separated by commas. Example: "fields": ["src", "page", "m_visits", "m_page_loads"]

• sort (optional): List of fields to sort by. Can be left empty.

• filter (optional): Paste the filter expression copied from the Piano API body. Can be left as an empty string if no filter is needed.

Once your JSON is filled in, click Next.

3

Map your fields (Schema)

The second step of the pop-in is the Schema mapping. QUANTI infers the type of each field and displays them in a table.

For each field, you can:

• Adjust the Type (STRING, INTEGER, FLOAT, etc.)

• Check Unique identifiers to mark the field as part of the primary key — this should include all dimension fields of your report, as they collectively form the unique identifier of each row

• Check Metric to flag a field as a numeric metric

Once all fields are correctly mapped, click Save to create the custom report table.

Limits

• Max 50 dimensions and metrics per Custom Report

• Piano Analytics limits the number of rows returned per query to 1,500,000 — use filters to stay within this limit
